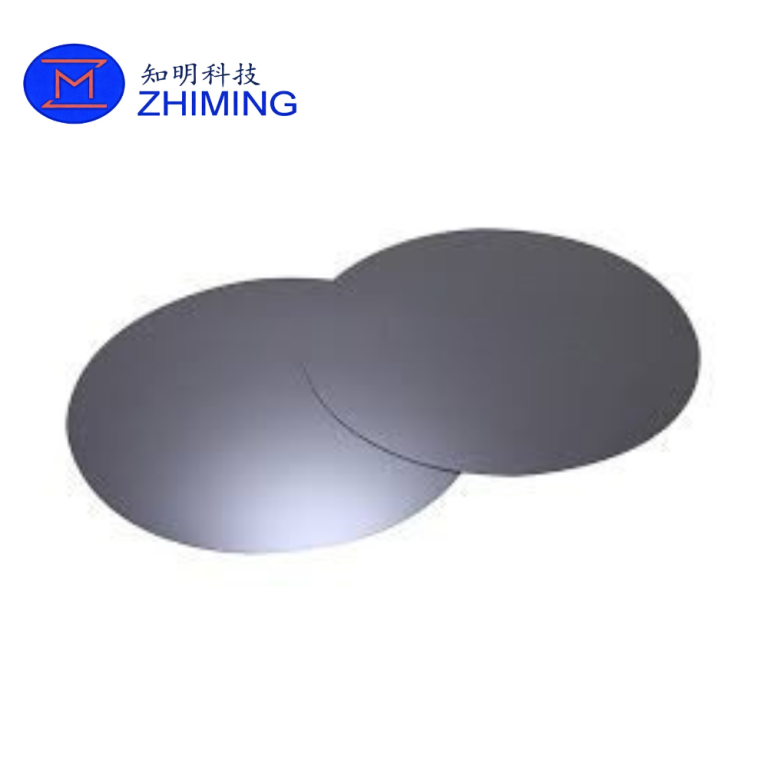

The SiC Dummy Wafer (Silicon Carbide Carrier Wafer / Process Monitor Wafer) is a high-durability process wafer engineered for semiconductor equipment qualification, chamber seasoning, thermal stabilization, process verification, and production wafer protection.

Unlike device-grade wafers used for chip fabrication, SiC dummy wafers function as auxiliary wafers within semiconductor process tools to maintain chamber equilibrium, optimize thermal distribution, and improve process repeatability during advanced manufacturing operations.

Thanks to the exceptional thermal conductivity, mechanical strength, and chemical stability of silicon carbide, SiC dummy wafers are particularly suitable for harsh semiconductor environments involving high temperatures, plasma exposure, corrosive chemistries, and repeated process cycling.

Core Functions of SiC Dummy Wafers

1. Chamber Conditioning & Warm-Up

Before production wafers enter the process chamber, SiC dummy wafers are used to stabilize chamber temperature, gas flow distribution, plasma density, and pressure conditions. This helps reduce process drift and improves wafer-to-wafer consistency.

2. Equipment Qualification & Process Validation

Widely used during tool installation, preventive maintenance, and recipe setup, SiC dummy wafers allow engineers to verify process stability without risking expensive production wafers.

3. Production Wafer Protection

In batch processing systems, dummy wafers can occupy unused wafer slots to maintain uniform thermal loading and plasma symmetry, minimizing edge effects and protecting valuable device wafers from instability or contamination.

4. Process Development & Recipe Optimization

Ideal for etching trials, deposition tuning, implantation testing, and chamber matching applications where repeated process cycling is required.

Why Choose SiC Instead of Silicon Dummy Wafers?

Exceptional Thermal Conductivity

Silicon carbide offers thermal conductivity significantly higher than conventional silicon, enabling faster heat transfer and improved temperature uniformity during thermal processing.

This reduces:

• Localized overheating
• Thermal stress concentration
• Wafer warpage
• Process non-uniformity

Outstanding High-Temperature Stability

SiC maintains excellent dimensional stability under elevated temperatures, making it highly suitable for:

• High-temperature annealing
• Epitaxy
• LPCVD
• Plasma-enhanced deposition systems

Superior Chemical Resistance

SiC exhibits excellent resistance to acids, alkalis, and aggressive semiconductor chemistries. Deposited films can often be selectively removed while preserving the wafer substrate, allowing multiple reuse cycles.

Excellent Mechanical Strength

Compared with conventional silicon wafers, SiC provides:

• Higher hardness
• Better wear resistance
• Lower deformation under stress
• Longer service life in repeated processing

Material Property Comparison

Key Advantages Summary

• Higher thermal conductivity for improved heat dissipation
• Better dimensional stability during high-temperature processing
• Superior resistance to plasma and corrosive environments
• Reduced mechanical deformation and wafer warpage
• Extended operational lifetime through repeated reuse

Typical Semiconductor Applications

• Semiconductor equipment qualification
• Chamber seasoning and conditioning
• Process debugging and verification
• Wafer warm-up and thermal balancing
• Plasma etching systems
• CVD and PVD deposition equipment
• Ion implantation systems
• RTP and annealing furnaces
• Wafer slot filling in batch systems
• Process repeatability testing
• Gas flow and thermal uniformity evaluation

Available Specifications

• Diameter: 2” / 4” / 6” / 8” / 12”
• Material: Silicon Carbide (SiC)
• Surface: Polished / Lapped / Custom
• Thickness: Customizable
• Edge Profile: Standard / Rounded / Customized
• Reusability: Multiple process cycles
• Customization: Available upon request

Advantages for Semiconductor Manufacturing

✔ Improved chamber stability
✔ Reduced process fluctuation
✔ Enhanced thermal uniformity
✔ Protection for high-value production wafers
✔ Lower consumable cost through reuse
✔ Suitable for aggressive semiconductor environments
✔ Long service life under repeated thermal cycling

FAQ

Q1: Are SiC dummy wafers reusable?

Yes. Due to their excellent chemical resistance and mechanical durability, SiC dummy wafers can typically be reused multiple times after proper cleaning and inspection.

Q2: Which semiconductor tools are compatible with SiC dummy wafers?

They are commonly used in:

• Etching systems
• CVD/PVD equipment
• RTP chambers
• Ion implantation tools
• Diffusion furnaces
• Wafer cleaning systems

Q3: Why are SiC dummy wafers preferred for high-temperature processing?

SiC provides superior thermal conductivity, higher stiffness, lower thermal deformation, and better resistance to harsh processing environments compared with standard silicon wafers.

Q4: Can custom dimensions and surface finishes be provided?

Yes. Custom diameter, thickness, flat/notch orientation, edge design, and surface treatment are available according to equipment requirements.
