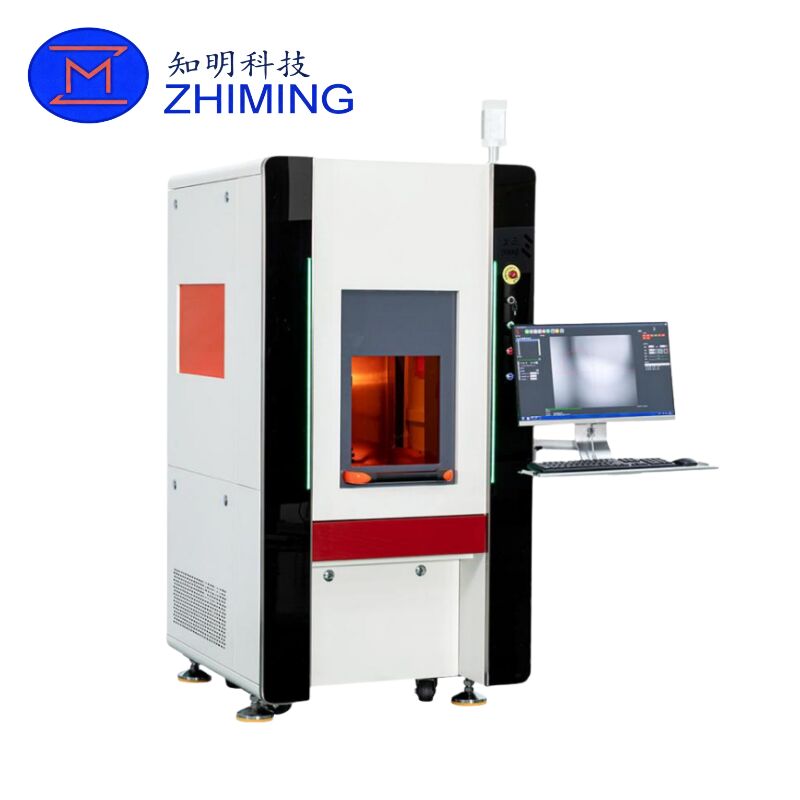

GREEN LASER Diamond Cutting Machine Precision Cutting for Diamond and Superhard Materials
The Green Laser Diamond Cutting Machine is a compact, precision-oriented laser processing system developed for cutting and slicing of diamond and superhard materials.
The system integrates a 532 nm green laser source, vibration-damping granite base, precision XYZ motion platform, CCD vision assistance, and proprietary programmable control software.
Compared with conventional 1064 nm infrared laser systems, the 532 nm green laser provides higher absorption efficiency, reduced thermal influence, lower graphitization risk, and smoother cutting edges, making it especially suitable for high-value and high-precision diamond processing applications.
532 nm green laser optimized for diamond processing
Compact mechanical structure designed for precision machining
Natural granite base for vibration suppression and thermal stability
High-precision XYZ motion system with excellent repeatability
CCD vision system for positioning and process monitoring
Programmable control software developed in-house
Fully enclosed safety cabinet for industrial laser operation
| Item | Specification |
|---|---|
| Laser wavelength | 532 nm |
| Laser power | 20 W @ 10 kHz |
| Cooling method | Water cooling |
| X-axis travel | 150 mm |
| Y-axis travel | 150 mm |
| Z-axis travel | 60–70 mm (configuration dependent) |
| XYZ axis repeatability | ±0.002 mm |
| Maximum platform speed | 500 mm/s |
| Item | Specification |
|---|---|
| Operating temperature | 20–25 °C |
| Relative humidity | ≤50% |
| Total power consumption | 1.8–2.0 kW |
| Power supply | 220 V / 50 Hz |
| Item | Specification |
|---|---|
| Overall dimensions | 1000 × 900 × 1780 mm |
| Machine weight | 600 kg |
| Slice Size (mm) | Max Kerf Width (μm) | Cutting Time (min) | Top-to-Bottom Tolerance (μm) |
|---|---|---|---|
| 7 × 7 | ≤230 | 20 | ≤30 |
| 10 × 10 | ≤320 | 42 | ≤30 |
| 15 × 15 | ≤600 | 160 | ≤30 |
Natural diamond
Synthetic diamond
CVD diamond
PCD / MCD
CBN
This machine is specifically developed for diamond and superhard materials, including natural diamond, synthetic diamond, CVD diamond, PCD, MCD, and CBN.
The 532 nm green laser offers superior absorption and cutting quality for these materials compared to infrared laser systems.
A 532 nm green laser provides:
Higher absorption by diamond materials
Smaller heat-affected zone
Reduced risk of graphitization
Smoother cutting edges and improved surface quality
These advantages are essential for precision diamond cutting and slicing applications.
The machine features a precision XYZ motion platform with a repeatability of ±0.002 mm.
The granite base further enhances stability by minimizing vibration and thermal deformation during processing.
The system operates with programmable motion control and process automation support.
Workpiece loading and fixture setup are manual, while cutting paths, motion sequences, and process parameters are software-controlled, providing high flexibility and reliability.
Yes.The machine is designed for industrial use and is suitable for international markets. It can be supplied with an English software interface, standard export packaging, and power configuration options according to customer requirements.
