| 브랜드 이름: | ZMSH |
| MOQ: | 20 |
| 배달 시간: | 2~4주 |
| 지불 조건: | 티/티 |

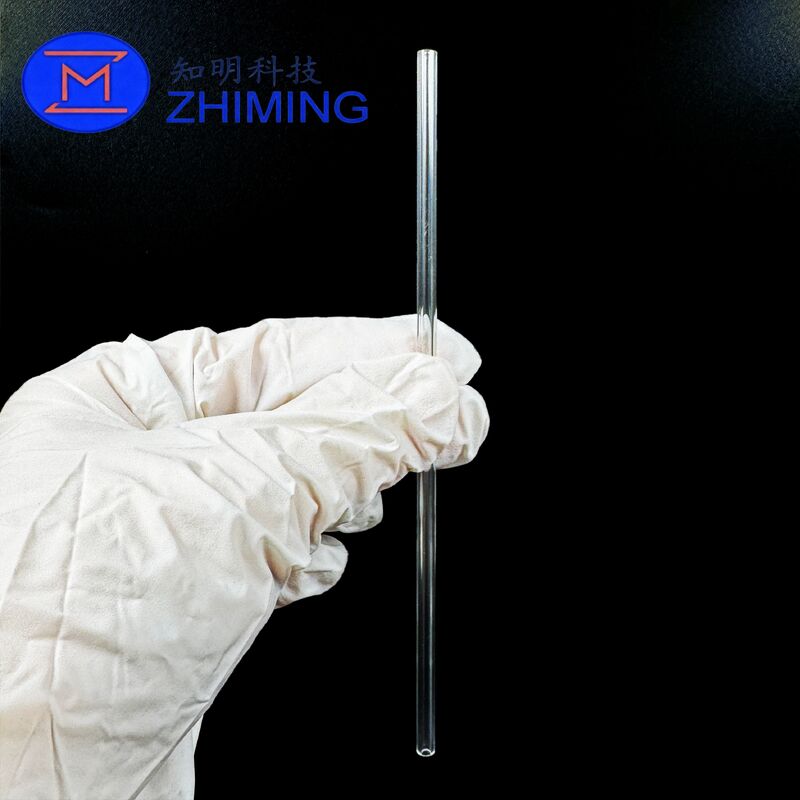

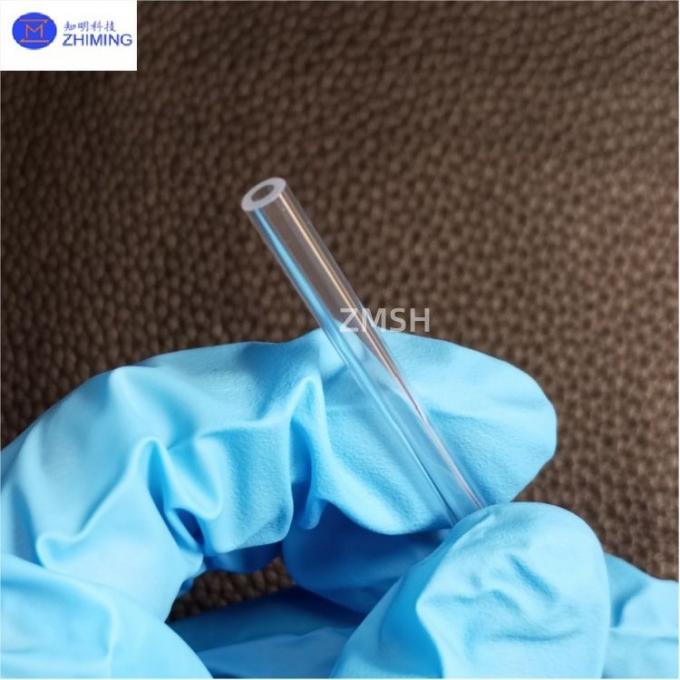

Our polished sapphire capillary tubes are precision-engineered using high-quality single-crystal sapphire (Al₂O₃), offering extreme hardness, excellent thermal resistance, and outstanding chemical stability. These tubes are ideal for applications requiring high-pressure, high-temperature, or corrosive environments, including analytical instruments, laser systems, microfluidics, and biomedical devices.
Sapphire’s broad optical transparency (UV 200 nm – IR 5 μm) makes it suitable for laser and infrared optical applications. Tubes can be provided as blank substrates, AR-coated pieces, or fully precision-polished to meet exact specifications.
Typical applications include:
Analytical & research instruments (HPLC, GC, ICP, spectroscopy)
Biomedical & microfluidic systems
Optical and laser guiding tubes
Semiconductor process components (CVD, MOCVD)
Aerospace & defense optical conduits
Extreme Hardness: Mohs hardness 9, second only to diamond; highly wear-resistant.
High Thermal Resistance: Melting point ~2030°C; reliable performance up to 1700–2000°C.
Chemical Inertness: Resistant to acids, alkalis, and most solvents.
Optical Clarity: Excellent transmission from 0.20 – 5.50 μm, low optical loss.
Electrical Insulation: Superior dielectric properties for high-voltage and high-frequency environments.
Mechanical Stability: Maintains structural integrity under vacuum, vibration, or rapid thermal cycling.
Customizable Polishing: Single-end, double-end, or full polishing to optimize performance.
Precision Dimensions: Inner/outer diameters controlled within ±0.005 mm.
| Parameter | Specification |
|---|---|
| Material | Sapphire (Al₂O₃) |
| Inner Diameter (ID) | 0.1 – 3 mm |
| Outer Diameter (OD) | 0.5 – 10 mm |
| Wall Thickness | 0.1 mm minimum |
| Length | 5 – 200 mm (customizable) |
| Dimensional Tolerance | ±0.005 mm |
| Concentricity | ±0.05 mm |
| Surface Quality | 40/20 or 20/10 scratch/dig |
| Clear Aperture | >90% |
| Parallelism | 30 arc sec |
| Chamfer/Bevel | <0.25 mm × 45° |
| Coating | AR, dielectric, metallic, or uncoated |
| Optical Transmission | 200 nm – 5 μm |
| Working Temperature | Up to 1700°C (air), 2000°C (inert) |
| Hardness | Mohs 9 |
| Chemical Resistance | Excellent against acids, alkalis, solvents |
| Pressure Resistance | Can withstand >100 MPa (depending on size) |
Analytical & research instruments: Chromatography, mass spectrometry, spectroscopic analysis
Biomedical & life sciences: Microfluidics, diagnostics, pharmaceutical transport
Optics & lasers: Fiber optic protection, laser beam guidance, optical sensors
Semiconductor industry: Gas delivery, plasma etching, CVD/MOCVD components
Aerospace & defense: Optical conduits and sensor protection under extreme conditions
Q1: What material are the tubes made of?
A: Synthetic single-crystal sapphire (Al₂O₃), known for extreme hardness, chemical inertness, and high thermal stability.
Q2: Why “semi-polished” instead of “half-polished”?
A: “Semi-polished” indicates selective polishing of critical areas to balance performance and cost, whereas “half-polished” may sound informal.
Q3: How does sapphire compare to quartz or ceramic capillaries?
A: Sapphire is harder, more thermally stable, more chemically resistant, and has superior optical transmission from UV to IR.
Q4: Can these tubes be customized?
A: Yes. ID, OD, length, bore finish, end shape, and coatings can all be tailored to specific requirements.
