| 브랜드 이름: | ZMSH |
| 모델 번호: | 사파이어 광섬유 |
| MOQ: | 25 |
| 가격: | by case |
| 배달 시간: | 2-4 주 |
| 지불 조건: | t/t |

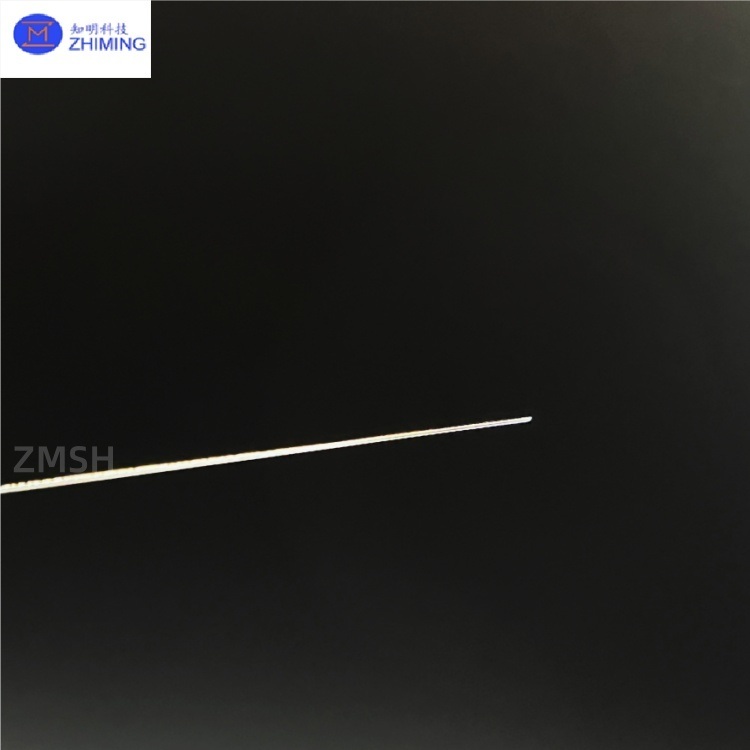

Custom Sapphire Optical Fiber Diameter 100μm for Environmental Sensors
Sapphire optical fiber is a material renowned for its exceptional chemical corrosion resistance and a melting point of 2,072°C. ZMSH offers LHPG (Laser Heated Pedestal Growth) grade sapphire fibers with diameters ranging from 75 to 500 μm. Furthermore, fibers with enlarged ends, fabricated through tapering processes, are also available. This is a significant feature because the flexibility of the fiber varies inversely with the fourth power of its diameter (e.g., a 100 μm fiber is 16 times more flexible than a 200 μm fiber). Tapered fibers provide users with high light transmission capability without sacrificing flexibility, making them suitable for both energy transmission and spectroscopic applications. PTFE sheaths and/or connectors are available for fibers with diameters larger than 100 μm.
The core advantages of sapphire fiber lie in its stability and reliability under demanding conditions.
Leveraging these characteristics, sapphire fiber is indispensable in several high-end fields.
| Parameter | Specification |
| Crystal Orientation | C-axis |
| Melting Point | 2072 °C |
| Tensile Strength | 2200 MPa |
| Damage Threshold | 1.3 kJ/cm² @ 3 μm |
| Numerical Aperture (NA) | 0.45 (300μm fiber, 1m length) |
| Attenuation | 0.5 ~ 1.0 dB in near-IR (300μm fiber, 1m length) |
| Bending Loss | 3% for a φ3cm loop (100μm fiber) |
| Standard Dimensions (Diameter vs. Maximum Continuous Length) | |
| Fiber Diameter | Maximum Continuous Length |
| 305 - 500 μm | 50 cm |
| 205 - 300 μm | 100 cm |
| 100 - 200 μm | 200 cm |
| 75 - 95 μm | 100 cm |
Q1: What is sapphire optical fiber?
A1: Sapphire optical fiber is a high-performance optical waveguide made from single-crystal aluminum oxide (α-Al₂O₃), renowned for its exceptional resistance to extreme temperatures (up to 2,072°C), chemical corrosion, and mechanical wear, making it ideal for harsh environments like aerospace, medical lasers, and industrial sensing.
Q2: What diameters are available for sapphire fiber?
A2: Standard diameters range from 25 μm to 500 μm, with customization options to support specific applications such as high-power laser delivery or precision medical imaging.
Tags: #Sapphire Optical Fiber, #Customized, #Diameter 100μm, #High-Purity, #Optical Component, #Corrosion-Resistant, #High-Temperature Rated, #Mohs Hardness 9, #Environmental Sensors, #Aluminum Oxide, Al₂O₃, #Sapphire
