| 브랜드 이름: | ZMSH |
| 모델 번호: | SiC 제곱 빔 |
| MOQ: | 25 |
| 가격: | by case |
| 배달 시간: | 2-4 주 |
| 지불 조건: | t/t |

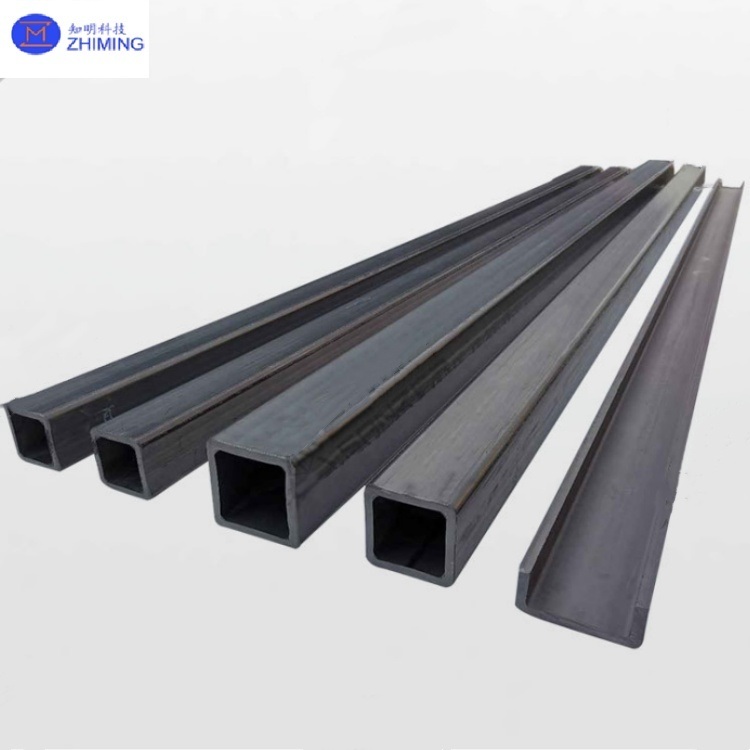

SiC Square Beams Industrial Kiln Load-Bearing Component
A Silicon Carbide (SiC) Beam is a high-performance, key load-bearing component for industrial kilns, manufactured using the reaction-bonded silicon carbide process. It is specifically designed for extreme high-temperature environments. It is primarily used in industrial kilns such as tunnel kilns, shuttle kilns, and double-layer roller hearth kilns, serving as the core structural framework for supporting kiln furniture and products. Its core value lies in its ability to operate long-term under high temperatures of up to 1380°C while maintaining exceptional dimensional stability and structural strength, significantly enhancing kiln operation efficiency, energy savings, and service life. It is an indispensable high-end kiln furniture in industries such as sanitary ceramics, electroceramics, and refractories.
Silicon Carbide Beams have key applications in multiple high-temperature industrial sectors due to their unique advantages:
The following are the core performance parameters of the Silicon Carbide Beam, which are directly related to its material characteristics, functions, and applications:
| Parameter Name | Typical Value/Range |
| Maximum Service Temperature | 1380°C |
| High-Temperature Bending Strength | 280 MPa |
| Density | ≥3.02 g/cm³ |
| Coefficient of Thermal Expansion | 4.5×10⁻⁶/K |
| Thermal Conductivity | 45 W/m·K |
| Bending Strength | 250 MPa |
| Elastic Modulus | 330 GPa |
| Mohs Hardness | 9.5 |
| Oxidation Resistance | Excellent |
| Thermal Shock Resistance | Excellent |
| Acid and Alkali Corrosion Resistance | Excellent |
Q1: What is a silicon carbide (SiC) beam used for?
A1: It is primarily used as a high-temperature load-bearing component in industrial kilns (like tunnel kilns and shuttle kilns) to support and carry kiln furniture and products during firing processes, especially in sanitary ceramics and electroceramics industries.
Q2: Why choose silicon carbide for kiln beams instead of traditional materials?
A2: Silicon carbide is chosen for its exceptional high-temperature strength, thermal stability (low thermal expansion), oxidation resistance, and long service life, which allow it to operate at temperatures up to 1380°C without bending or deforming, significantly outperforming many traditional materials.
Tags: #SiC Square Beams, #Customized, #Industrial Kiln Load-Bearing Component, #Oxidation Resistance, #Thermal Shock Resistance, #Acid and Alkali Corrosion Resistance
