| 재료: | 단결정 (α-al₂o₃) | 크기: | 222mm × 74mm × 4mm |
|---|---|---|---|
| 명확한 조리개: | > 90% | 표면 거칠기 (RA): | ≤0.2 nm |
| 경도: | Mohs 경도 9 | 열 팽창 계수: | 8.8 × 10/° C |
| 탄성 계수: | 435 GPA | 응용 프로그램: | 반도체 제조, 광학 기기 |

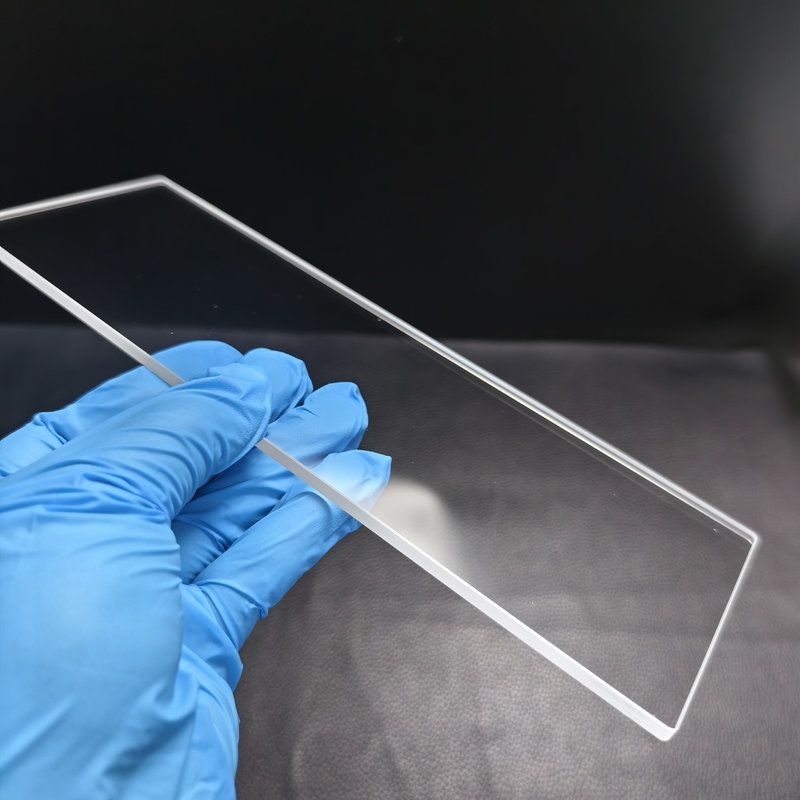

Custom Sapphire Optical Window 222mm×74mm×4mm Wear Resistance for Infrared windows
Blue Sapphire Optical Windows are primarily fabricated from optical-grade sapphire (α-Al₂O₃ single crystal). Here, "sapphire" refers not to natural gemstones but to high-purity, single-crystal aluminum oxide (Al₂O₃). Renowned for its exceptional hardness (Mohs hardness of 9, second only to diamond), outstanding wear resistance, thermal stability (melting point ~2030–2050°C), chemical inertness, and broad spectral transmission (0.2 μm–5.5 μm), sapphire is an indispensable material for extreme-environment optical applications.
A "window" typically refers to a flat, transparent plate that protects sensitive optical systems (e.g., sensors, lasers, detectors) from environmental hazards such as dust, scratches, chemical corrosion, or high-temperature/high-pressure conditions while maintaining superior optical transmission.
1.Ultra-High Hardness & Wear Resistance
2.Broad Spectral Transmission
3.Extreme Thermal Stability
4.Chemical Inertness
5.Mechanical Robustness
1. Semiconductor Manufacturing
2. Optical Instruments
3. Industrial Sensing
4.Scientific Research & Defense
5.Consumer Electronics
|
Parameter Name
|
Typical Value/Range
|
|
Material
|
Optical-grade Sapphire Single Crystal (α-Al₂O₃)
|
|
Size
|
222mm×74mm×4mm
|
|
Thickness Tolerance
|
±0.1 mm
|
|
Clear Aperture
|
>90%
|
|
Surface Roughness (Ra)
|
≤0.2 nm
|
|
Transmission Range
|
170–5500 nm
|
|
Thermal Expansion Coefficient
|
8.8 × 10⁻⁶/°C
|
|
Refractive Index
|
1.773
|
|
Elastic modulus
|
435 GPa
|
*We accept customized one, please feel free to contact us about your requirements.
2. Ti:Sapphire Window For Laser Instruments Translucent Red Double Sided Polishing
1. Q: Where are sapphire optical windows commonly used?
A: Sapphire optical windows are widely used in high-temperature environments (e.g., industrial furnaces), laser systems, defense equipment (FLIR systems), and aerospace instrumentation due to their extreme durability and thermal stability.
2. Q: What makes sapphire windows better than glass?
A: Sapphire offers superior hardness (Mohs 9), chemical inertness, thermal resistance up to 2030°C, and broad transmission (UV to mid-IR), making it ideal for harsh applications where glass would degrade.
Tags: #Sapphire Optical Window, #Custom, #High Hardness, #High Hardness, #Infrared Windows, #Al₂O₃ Single Crystal, #Optical Instruments, #Double-Side Polished, #Sapphire Glass Windows Size 222mm×74mm×4mm, #Wear Resistance
