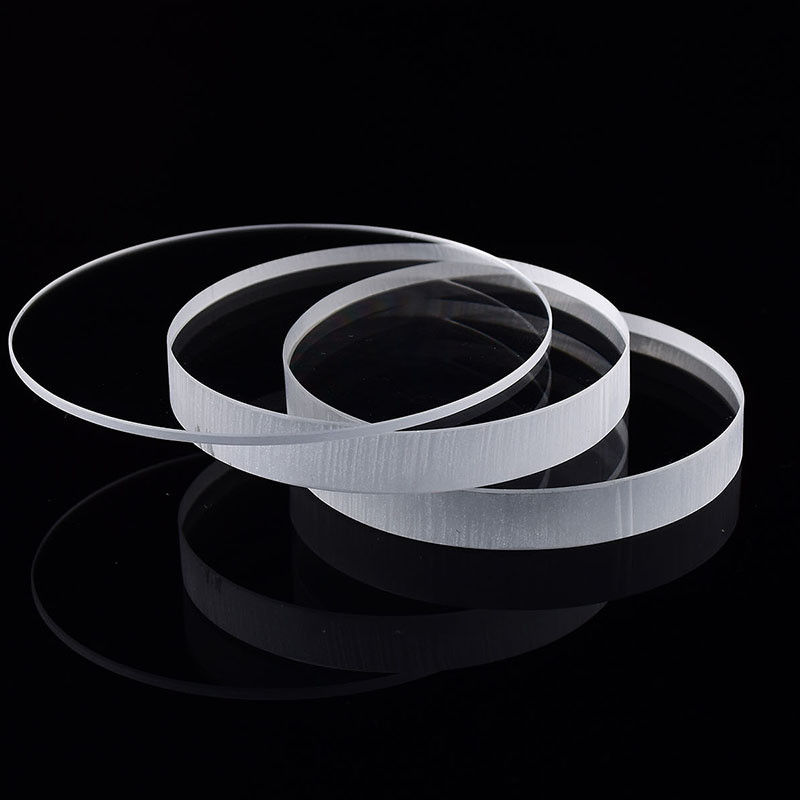

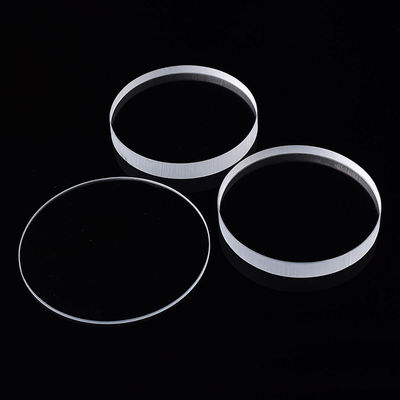

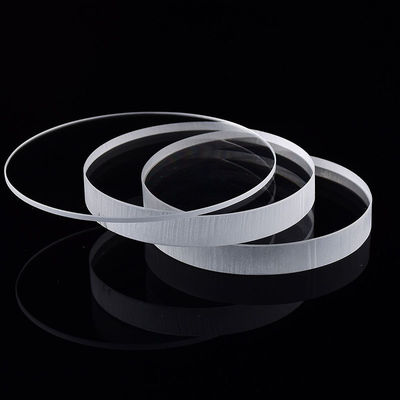

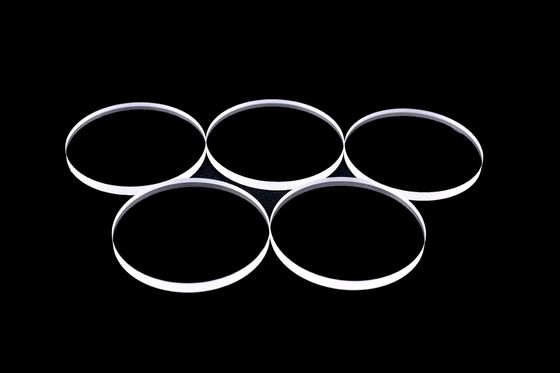

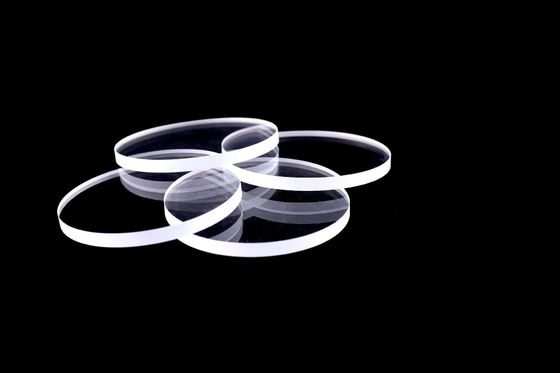

Fused quartz glass offers unmatched durability and performance in demanding environments where ordinary materials fail. Formed from ultra-pure silicon dioxide (SiO₂), it boasts superior thermal stability, corrosion resistance, and broad-spectrum optical transmission. Our custom-shaped quartz glass plates are engineered to support high-precision systems in critical applications—whether exposed to thermal stress, chemical attack, or ultraviolet radiation.
From R&D laboratories to industrial cleanrooms, each piece is crafted to exact specifications, ensuring consistent performance and compatibility. Available in a wide range of geometries and finishes, our quartz glass solutions are ideal for integration into optical instruments, process equipment, and thermal systems.
Explore how fused quartz components are enabling reliability and innovation across industries:
Quartz plates act as viewing windows, thermal barriers, and structural components in vacuum and atmosphere-controlled furnaces operating above 1000°C.
Used in plasma etching chambers, wafer handling fixtures, and photolithography tools, quartz provides purity, chemical resistance, and dimensional precision.
Quartz maintains high transmission across ultraviolet to infrared wavelengths, making it ideal for laser optics, sterilization lamps, and IR detection systems.
Non-reactive and transparent, quartz serves as a critical component in reactors, flow cells, and analytical instruments exposed to acids, solvents, and elevated temperatures
As a protective and transmissive barrier, quartz glass enables the long-term performance of solar receivers, concentrators, and photovoltaic modules under extreme heat and UV.
Quartz glass is used in protective sensor windows, optical lenses, and viewing panels for high-altitude and aerospace environments that demand resilience and clarity.
Quartz offers thermal and chemical inertness in instruments such as spectrophotometers, cuvettes, and TGA/DSC systems used in clinical and research applications.
✔ Extreme Temperature Stability
Performs reliably at temperatures exceeding 1000°C, with a melting point above 1700°C.
✔ Exceptional Corrosion Resistance
Chemically inert to most acids and gases, ideal for aggressive lab or process environments.
✔ Optical Precision Across Spectra
High transmission from UV (200 nm) through visible and IR (~3500 nm).
✔ Custom Geometry Compatibility
Shapes include discs, squares, slots, cut-outs, and fully contoured parts based on your CAD.
✔ Clean and Pure
Produced from synthetic or natural high-purity quartz with minimal trace metals.
✔ Tight Dimensional Control
Machining tolerances down to ±0.01 mm and surface flatness up to λ/10 available.
✔ Coating Ready
Compatible with AR, UV-enhanced, or hydrophobic coatings as needed.
| Attribute | Details |
|---|---|
| Material | Fused Quartz (≥99.99% SiO₂) |
| Transmission Range | 200–3500 nm |
| Operating Temperature (Continuous) | ~1100°C |
| Short-Term Thermal Tolerance | Up to 1250°C |
| Melting Point | ~1700°C |
| Thermal Expansion Coefficient | 0.55 × 10⁻⁶ /°C |
| Standard Thickness Range | 0.5 mm – 20 mm |
| Shape Options | Round, square, elliptical, slotted, custom |
| Tolerance (Standard/Precision) | ±0.1 mm / ±0.01 mm |
| Surface Finish Options | Ground, fire-polished, optically polished |
| Surface Quality | 60/40, 40/20, 10/5 (per MIL-PRF-13830B) |
| Flatness | λ/2 to λ/10 |
| Certifications | ISO9001, RoHS, REACH compliant |
Q1: Can you produce custom shapes based on a drawing?
Yes. We accept detailed drawings or CAD files and can fabricate complex geometries including holes, bevels, or internal features.
Q2: What’s the difference between fused quartz and fused silica?
They are functionally similar. Fused silica is synthetically produced from high-purity gas-phase precursors and often used in optical applications. Fused quartz is naturally derived and generally preferred for industrial use.
Q3: Do you offer polishing or coating services?
Yes. We offer single- or double-sided polishing, AR coating, and other optical treatments upon request.
Q4: What is the minimum order quantity (MOQ)?
There is no strict MOQ for prototypes. For production runs, pricing is optimized for quantities above 10 pcs.
Q5: Can parts be cleaned and packaged for cleanroom environments?
Yes. We offer ultrasonic cleaning and cleanroom packaging options (Class 100 or better).
We don’t just supply quartz components—we support your entire design and development cycle.
